Beaver Bighaul Wire Rope Hoists

Product Code: MH5185

 Find a Stockist
Unit Description
Each
Downloads
Data Sheet
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

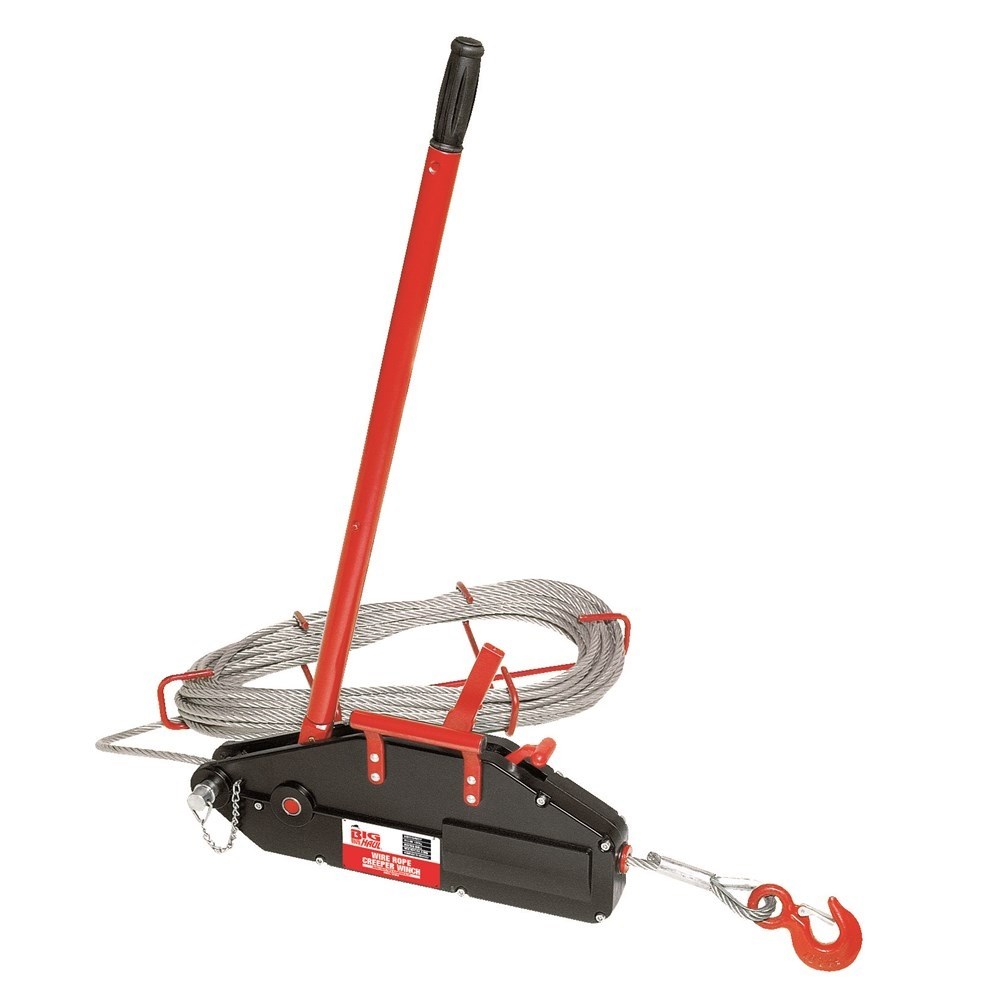

The Bighaul Wire Rope Hoist is a versatile, portable, and compact creeper winch for pulling, lifting, lowering, spanning, 4WD recovering, and securing loads over large distances. The unit comes complete with an operating lever, and 20m of wire rope mounted on a reel.

Product Features:
  • Aluminium body is lightweight and offers corrosion resistance
  • Inbuilt overload protection system with a shear pin in forward lever, (shears when approximately 25% overloaded)
  • Proof load tested at time of manufacture
  • Individual serial numbers for easy traceability to a test certificate
  • Wire rope fitted with safety latch hook at one end and tapered at other end for easy insertion into the unit
  • Dual rated for pulling of lifting applications

Other Features:

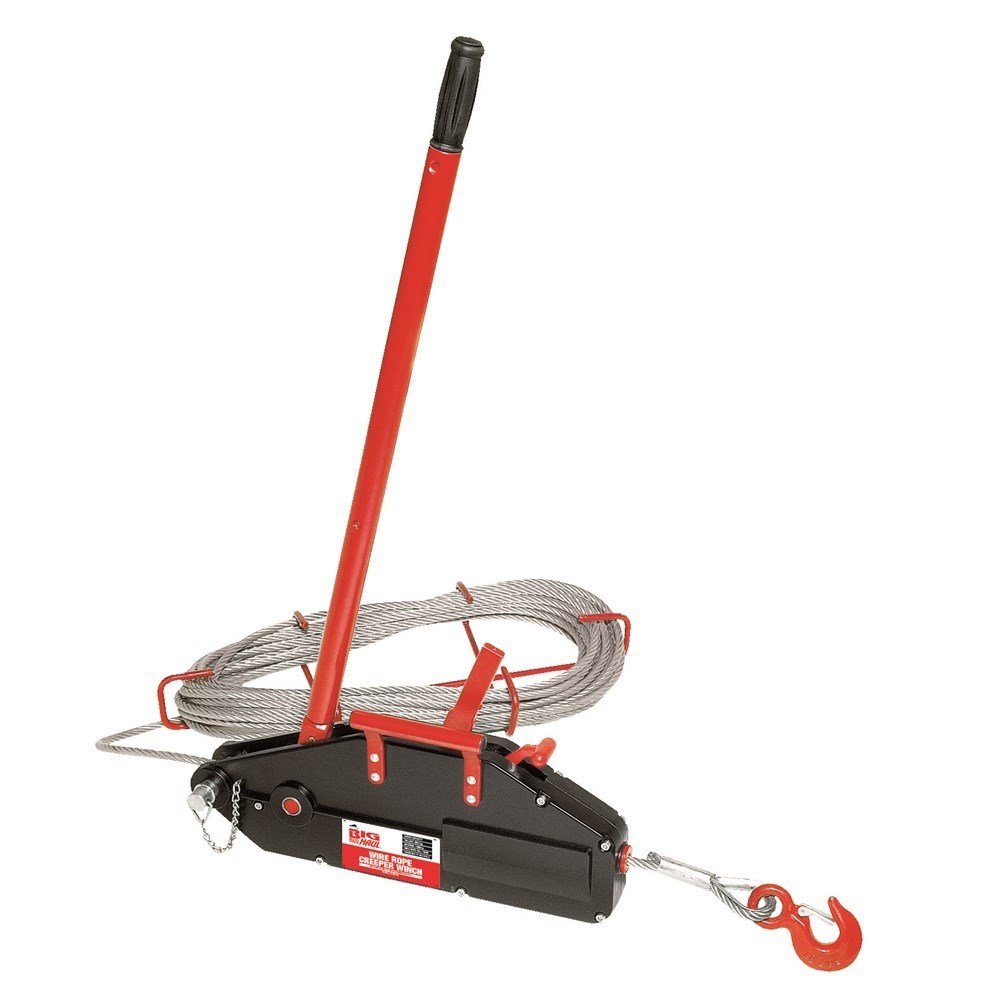

  • 0.8t and 1.6t Hoist supply with Eye Sling Hook with Safety Latch

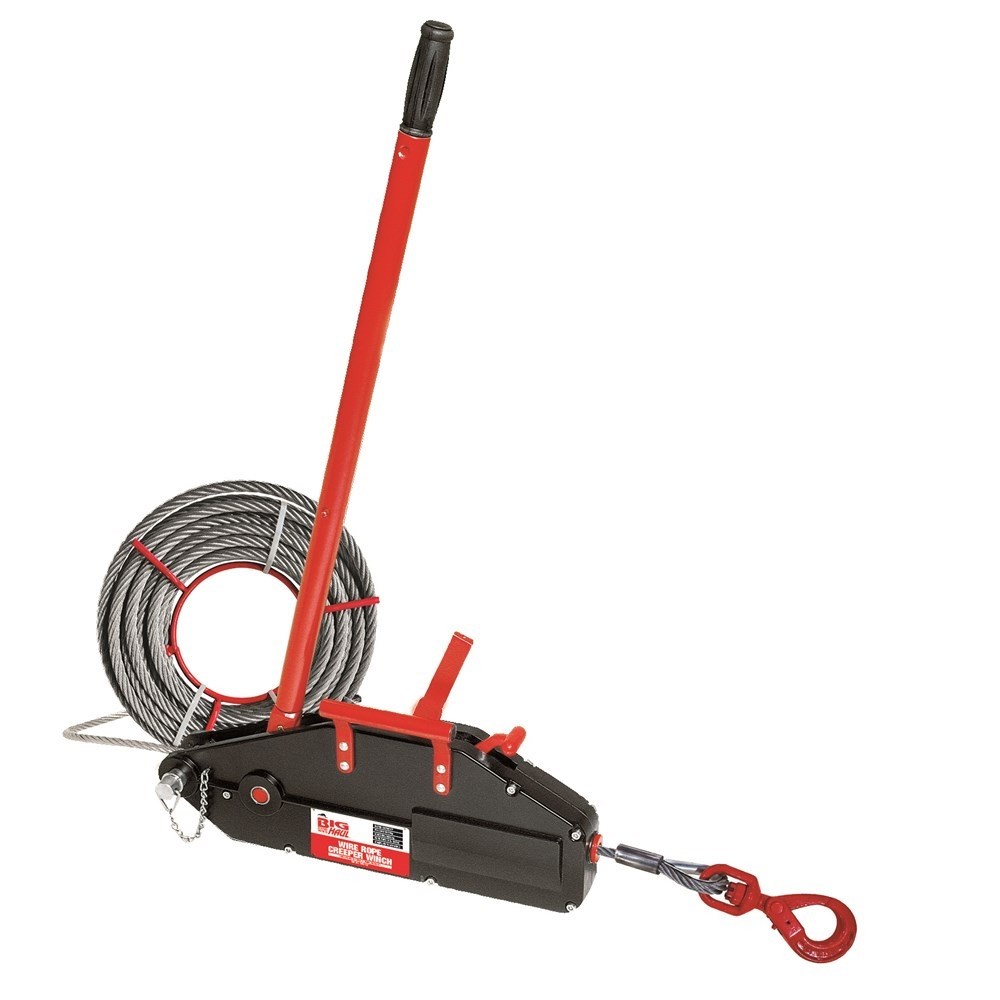

  • 3.2t hoist supply with Eye Swivel Self Locking Hook

Approved Standards:
  • Complies to AS 1418.2
Product Code 518508 518516 518532
Rated Lifting Capacity 0.8t 1.6t 3.2t
Rated Pulling Capacity 1.25t 2.5t 5t
Wire Rope Diameter 8.3mm 11mm 16mm
Std Rope Length 20m 20m 20m
Rope Advanced per Full Stroke Cycle 60mm 60mm 40mm
Effot on Handling at Rated Lifting Capacity; Forward Operation 284kN 412kN 441kN
Nett Weight 7.5kg 12kg 13kg

This model complies to AS 1418.2 and comes with an overload protection system built in, with a shear pin in the forward lever, which will shear when approximately 25% overloaded. These winches are tested and have individual serial numbers for easy traceability to a test certificate.

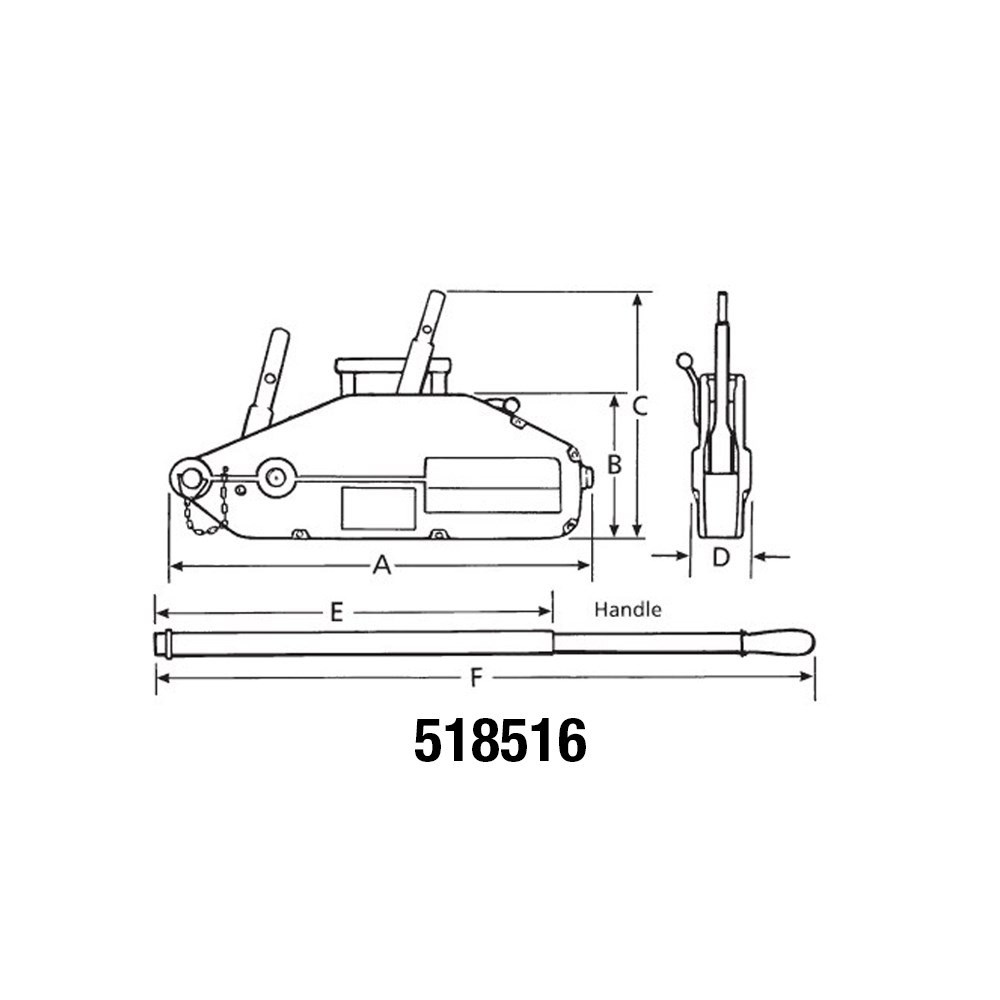

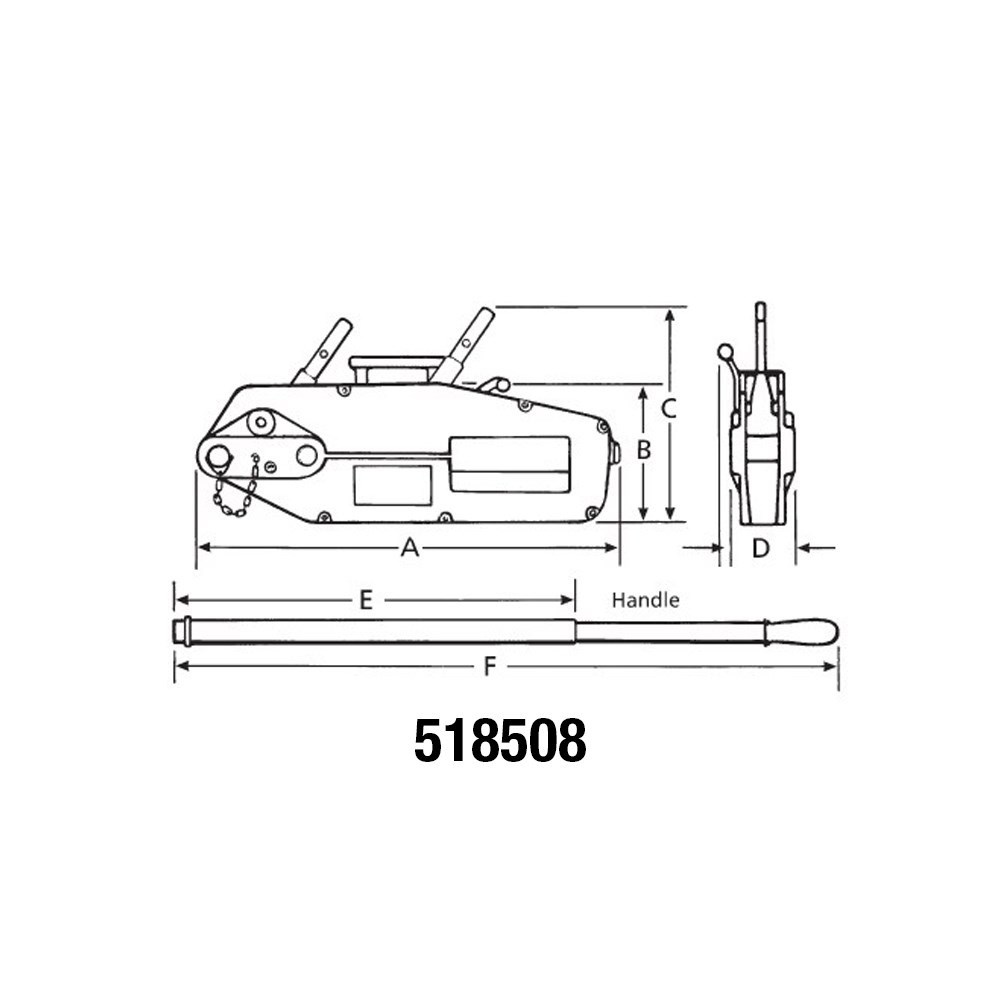

Product Code Rated Lifting Capacity A B C D E F
518508 0.8t 430mm 165mm 230mm 60mm 800mm -
518516 1.6t 540mm 190mm 300mm 75mm 790mm 1200mm
518532 3.2t 660mm 220mm 330mm 110mm 790mm 1200mm

For more information on our materials handling range, please contact our Customer Care team.
