Beaver Forged Stub and Stub Commercial Turnbuckles - Galvanised

Product Code: MH3250

 Find a Stockist
Unit Description
Each
  • Description
  • Warranty, Return & Exchange Policy
  • Shipping Info

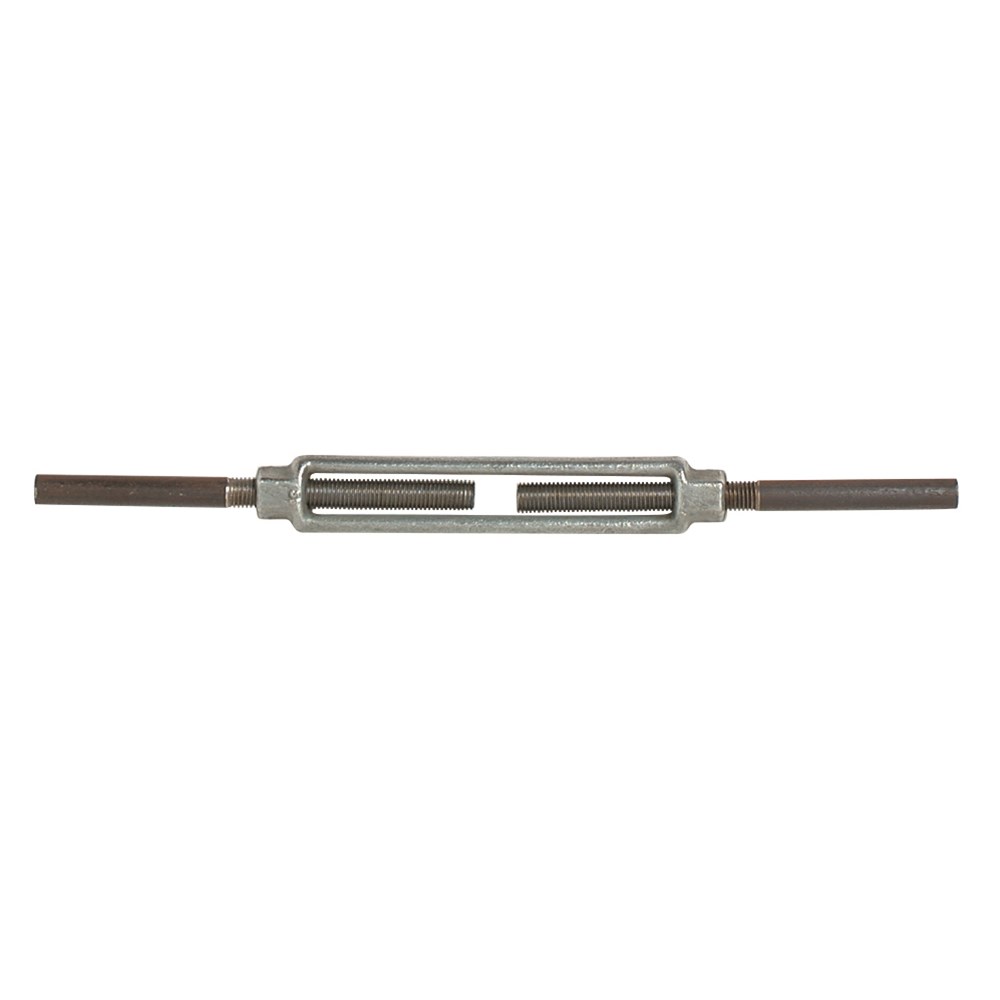

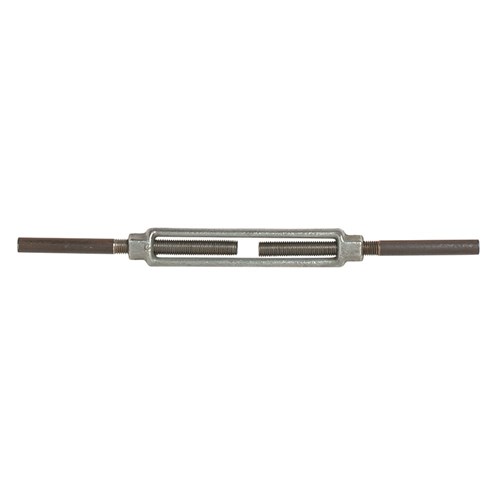

Made from heavy duty forged steel, Beaver Forged Stub and Stub Commercial Turnbuckles allow flexibility to weld tensioning systems.
The turnbuckles are ideal for straight or inline tension applications.

Product Features:

  • Stub ends allow for customisation
  • Heavy duty, manufactured from forged steel
  • Hot dipped galvanised finish for added protection against rust and corrosion
Not to be used for lifting applications.

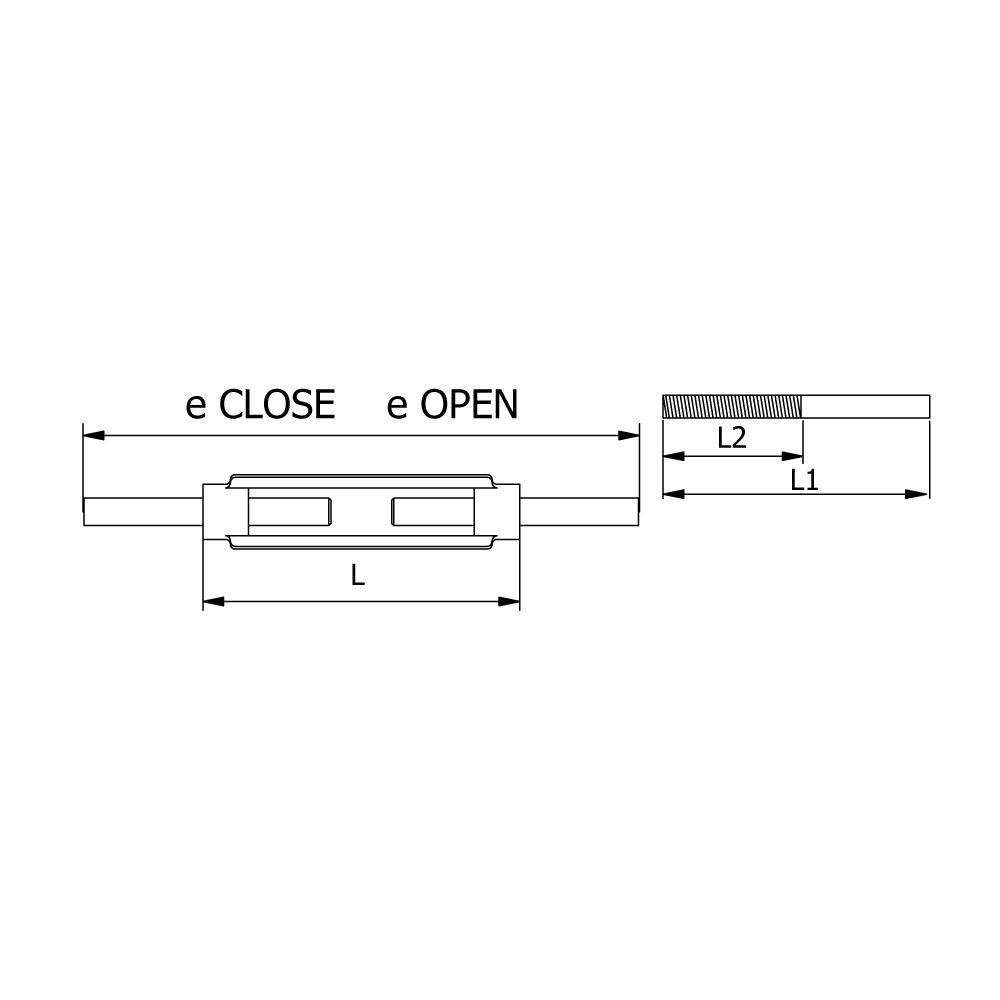

Product Code Size (mm) Finish Open Closed L L1 L2 Weight
325010 10mm Hot Dipped Galvanised 500mm 320mm 144mm 170mm 80mm 0.26kg
325013 13mm Hot Dipped Galvanised 560mm 395mm 190mm 200mm 100mm 0.5kg
325016 16mm Hot Dipped Galvanised 682mm 500mm 250mm 240mm 115mm 1kg
325020 20mm Hot Dipped Galvanised 759mm 555mm 295mm 260mm 130mm 1.68kg
325023 22mm Hot Dipped Galvanised 800mm 585mm 320mm 270mm 140mm 2.46kg
325025 25mm Hot Dipped Galvanised 800mm 610mm 350mm 300mm 170mm 2.56kg

Size and dimensions are to +/- 10%. Please note that size does not represent thread.
