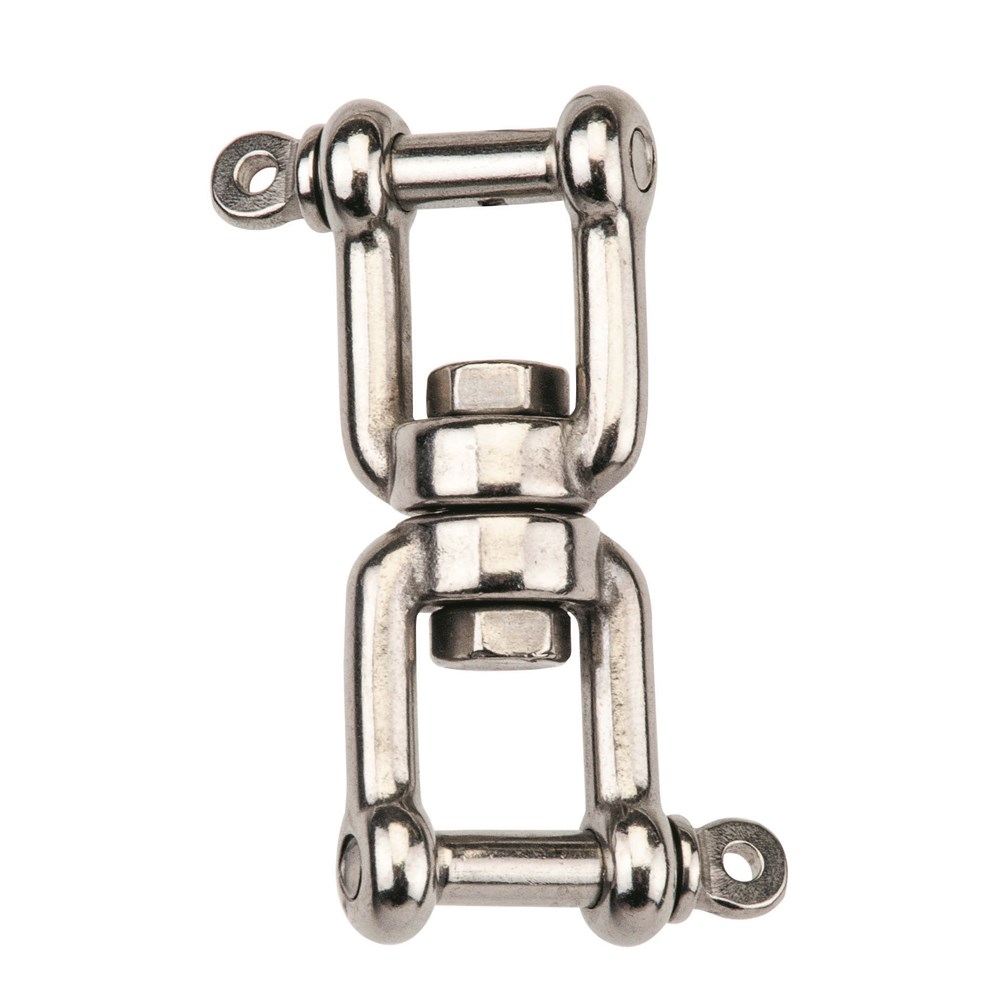

Beaver Grade 316 Stainless Steel Jaw / Jaw Swivels are ideal for wire rope, shade sail or other tensioning structures. They can be secured by tensioning the pins on the device.
Beaver Jaw and Jaw Swivels align two loads to reduce stress. They are designed to ensure a straight line between them as they will not turn and misalign under load.
The marine grade stainless steel has a high corrosion resistance suited to harsher environments, such as where saltwater is present. These Eye and Eye Swivels are also suitable for food and pharmaceutical processing applications.
Product Features:
- Jaw ends makes it easy to connect or remove loads
- Designed for a straight line (alignment) between two loads
- Will not swivel and misalign under load
- Marine grade 316 stainless steel for harsh environments

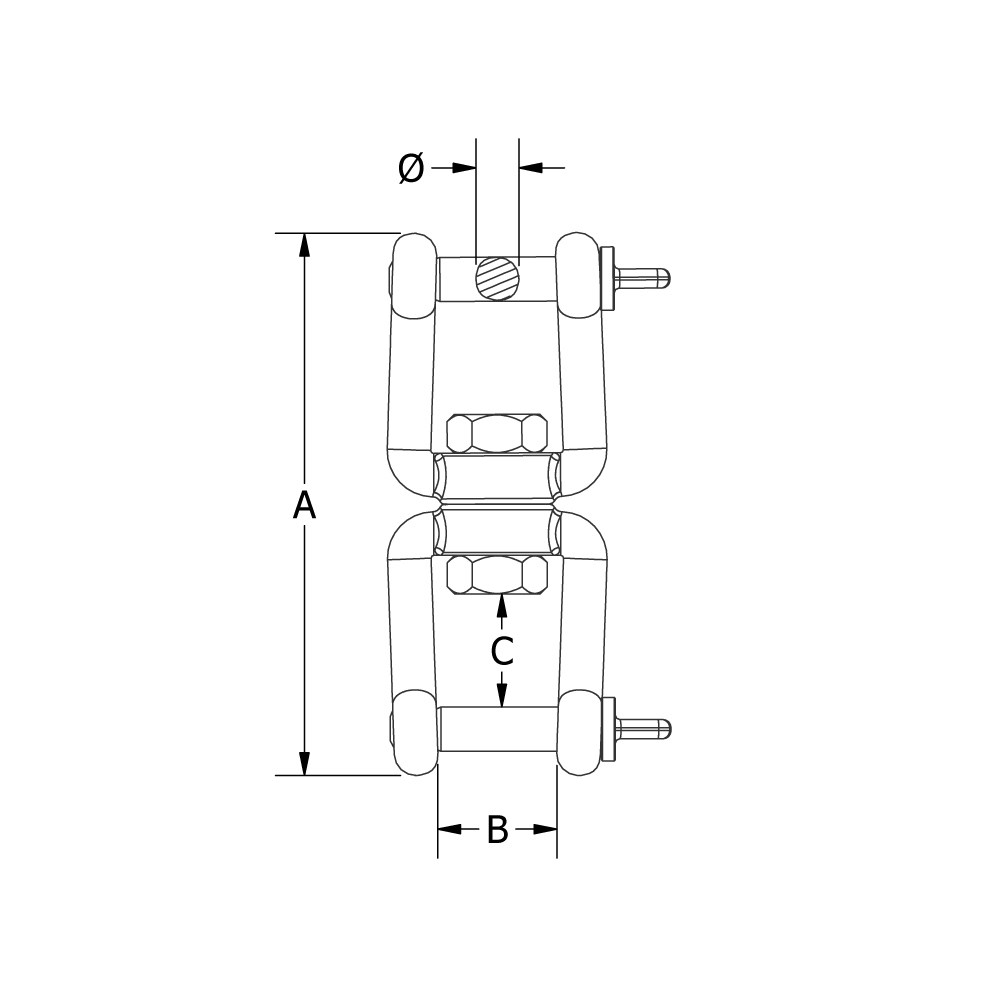

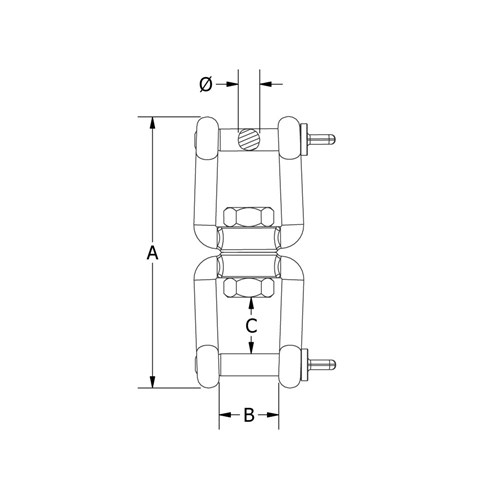

Product Code |
Thickness |
A |
B |
C |
Grade |
Weight |
619306 |
6mm |
64.4mm |
12mm |
12mm |
316 |
0.07kg |
619308 |
8mm |
87mm |
16mm |
15.5mm |
316 |
0.14kg |
619310 |
10mm |
111mm |
18.5mm |
20.5mm |
316 |
0.258kg |
619313 |
13mm |
143.5mm |
26mm |
25.5mm |
316 |
0.62kg |
For more information on special pricing available for bulk/pail sales, please contact our Customer Care team.
