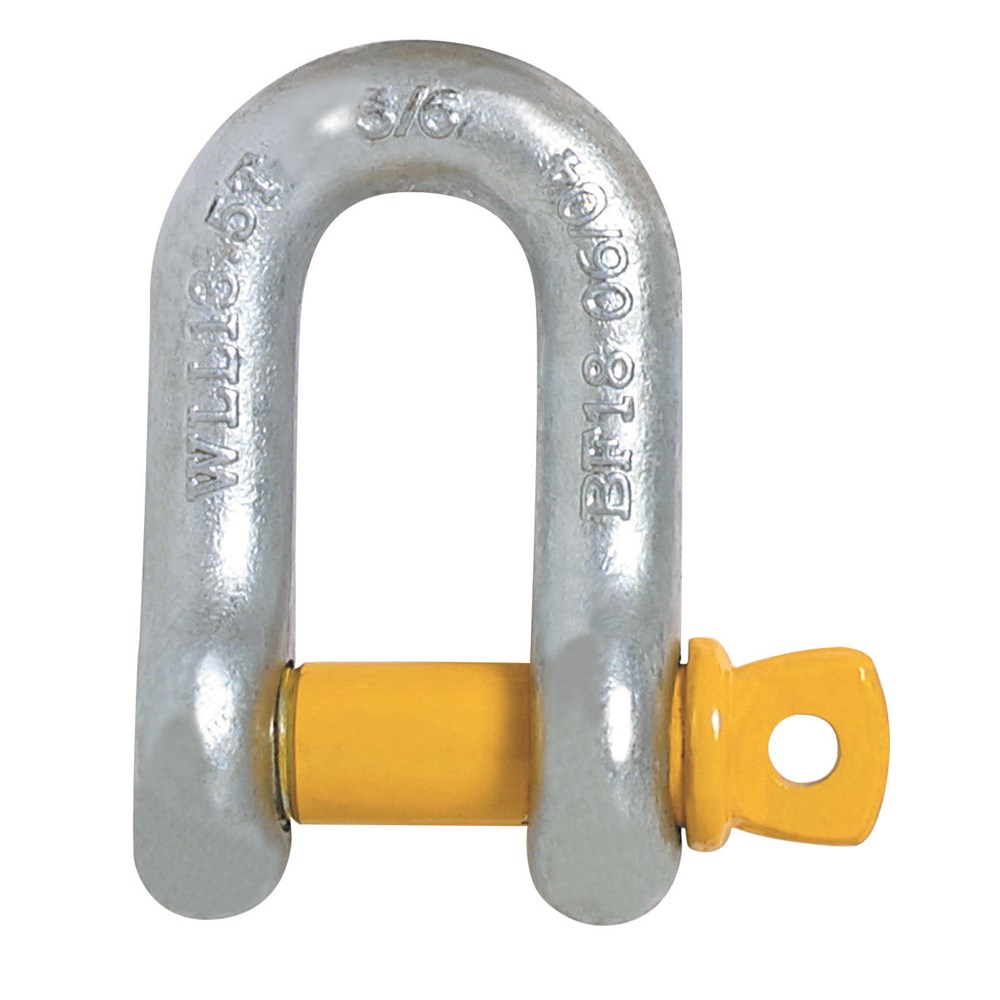

Beaver Grade S Yellow Screw Pin Dee Shackles are suitable for all lifting applications in various industries including mining and construction.
Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.
Product Features:
- Dee shape shackle with screw pin
- Hot dipped galvanised with yellow painted pin
- High strength to size ratio
Approved Standards:
Product Code |
Size |
WLL |
Type |
Shape |
Closing Method |
241306 |
6mm x 8mm |
0.5t |
Grade S |
Dee |
Screw |
241308 |
8mm x 10mm |
0.75t |
Grade S |
Dee |
Screw |
241310 |
10mm x 11mm |
1t |
Grade S |
Dee |
Screw |
241311 |
11mm x 13mm |
1.5t |
Grade S |
Dee |
Screw |
241313 |
13mm x 16mm |
2t |
Grade S |
Dee |
Screw |
241316 |
16mm x 19mm |
3.2t |
Grade S |
Dee |
Screw |
241319 |
19mm x 22mm |
4.7t |
Grade S |
Dee |
Screw |
241322 |
22mm x 25mm |
6.5t |
Grade S |
Dee |
Screw |
241325 |
25mm x 29mm |
8.5t |
Grade S |
Dee |
Screw |
241329 |
29mm x 32mm |
9.5t |
Grade S |
Dee |
Screw |
241332 |
32mm x 35mm |
12t |
Grade S |
Dee |
Screw |
241335 |
35mm x 38mm |
13.5t |
Grade S |
Dee |
Screw |
241338 |
38mm x 41mm |
17t |
Grade S |
Dee |
Screw |
241344 |
44mm x 51mm |
25t |
Grade S |
Dee |
Screw |
241351 |
51mm x 57mm |
35t |
Grade S |
Dee |
Screw |
Screw pin shackles are used mainly for non-permanent applications. The Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.

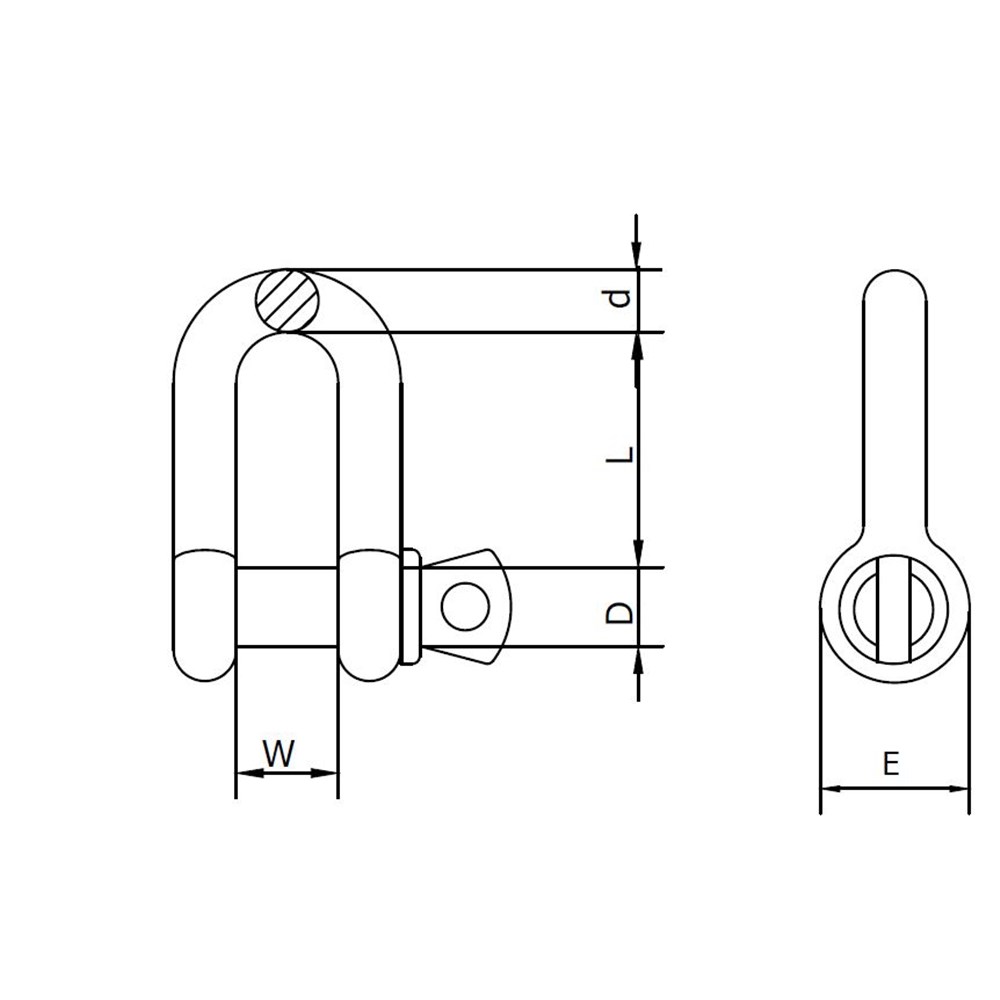

Product Code |
Size |
Diameter |
Pin Diameter (D) |
Inside Width (W) |
Inside Length (L) |
Diameter Boss (e) |
241306 |
6mm x 8mm |
6mm |
8mm |
12mm |
22mm |
17mm |
241308 |
8mm x 10mm |
8mm |
10mm |
13mm |
26mm |
21mm |
241310 |
10mm x 11mm |
10mm |
11mm |
17mm |
32mm |
25mm |
241311 |
11mm x 13mm |
11mm |
13mm |
18mm |
37mm |
27mm |
241313 |
13mm x 16mm |
13mm |
16mm |
21mm |
41mm |
33mm |
241316 |
16mm x 19mm |
16mm |
19mm |
27mm |
51mm |
40mm |
241319 |
19mm x 22mm |
19mm |
22mm |
32mm |
60mm |
48mm |
241322 |
22mm x 25mm |
22mm |
25mm |
37mm |
71mm |
54mm |
241325 |
25mm x 29mm |
25mm |
29mm |
43mm |
81mm |
60mm |
241329 |
29mm x 32mm |
29mm |
32mm |
46mm |
90mm |
67mm |
241332 |
32mm x 35mm |
32mm |
35mm |
52mm |
100mm |
76mm |
241335 |
35mm x 38mm |
35mm |
38mm |
57mm |
113mm |
84mm |
241338 |
38mm x 41mm |
38mm |
41mm |
60mm |
124mm |
92mm |
241344 |
44mm x 51mm |
44mm |
51mm |
73mm |
146mm |
110mm |
241351 |
51mm x 57mm |
51mm |
57mm |
83mm |
171mm |
127mm |
For more information on special pricing available for bulk/pail sales, please contact our Customer Care team.
Please note that all dimensions are nominal. Actual dimensions fall within the tolerances of AS 2741.
